Non-Retractable Central Pole Umbrellas
Features
- Quality water-proof PVC with self-cleaning coat
- Provide UV protection
- Hot dip galvanized steel frame with powder coating or epoxy painting system
- Heavy-duty umbrella engineered to a rating of wind, snow load
- 5 Years Warranty
- Canopy & frame color optional
- Logo & brand printing optional
Description

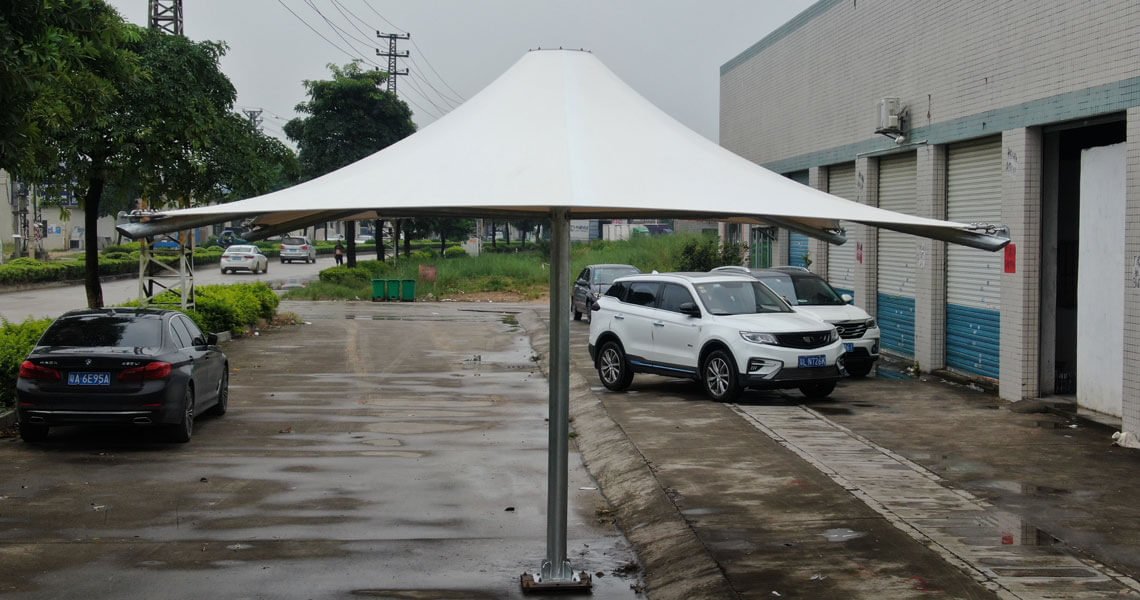

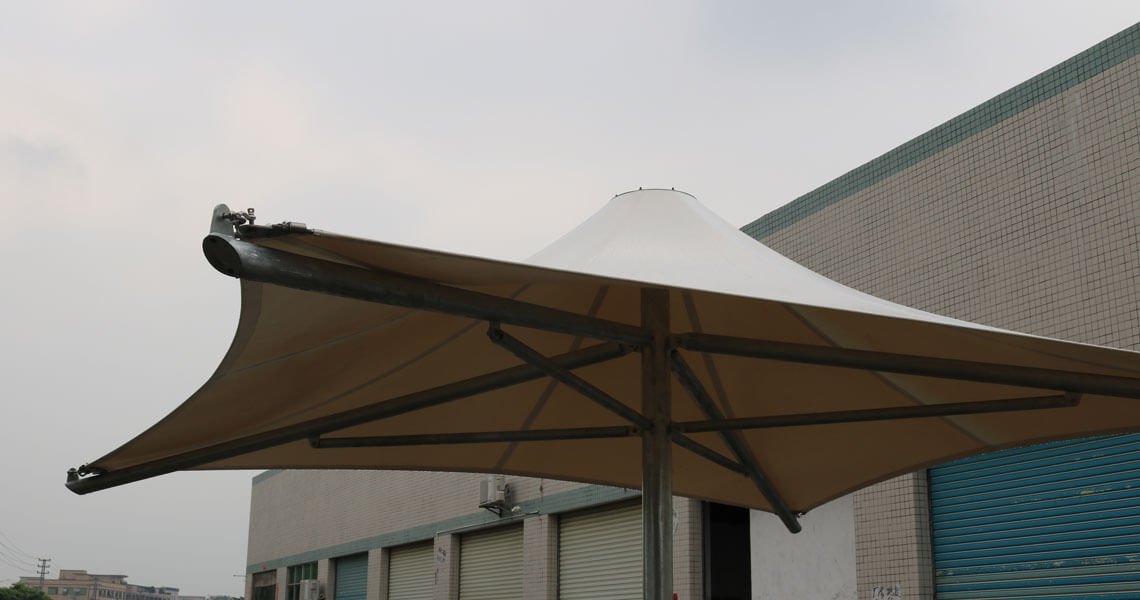

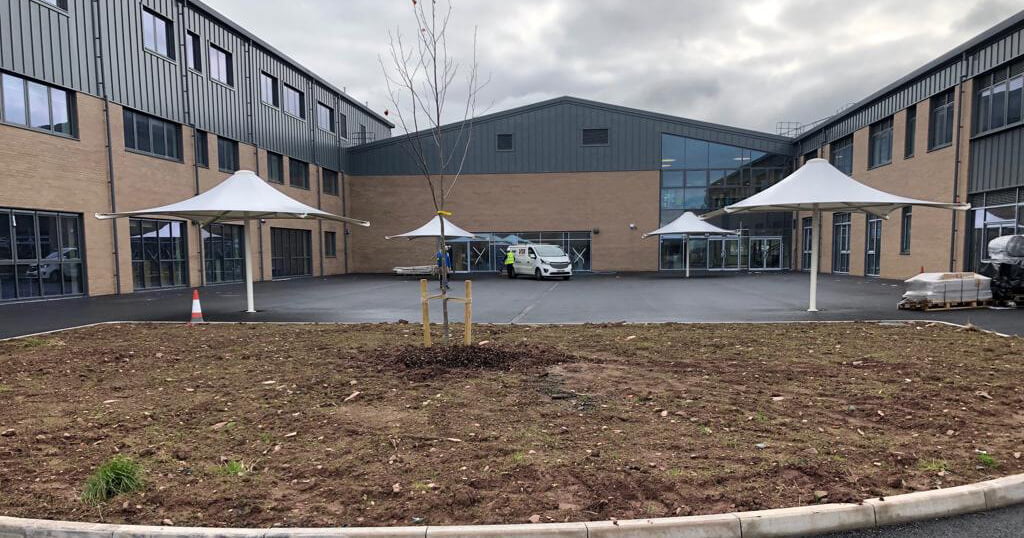

The Central Pole Umbrella·Fixed Type series is a tensile shade structure, which is made of high strength structural steel and advanced architectural membrane. Tensile shade structure is engineered to 145km/hour wind load, and could be easily upgraded. At present we have square and hexagonal canopy optional, which can cover a shading area between 8 to 25sqm. There are other possibilities, such as linear edge, continuously connected and multi-cone canopy, different canopy color, frame finish color, logo painting etc. All the models include stainless steel cables and fittings, UV stabilized membrane, and are delivered to site in component form.

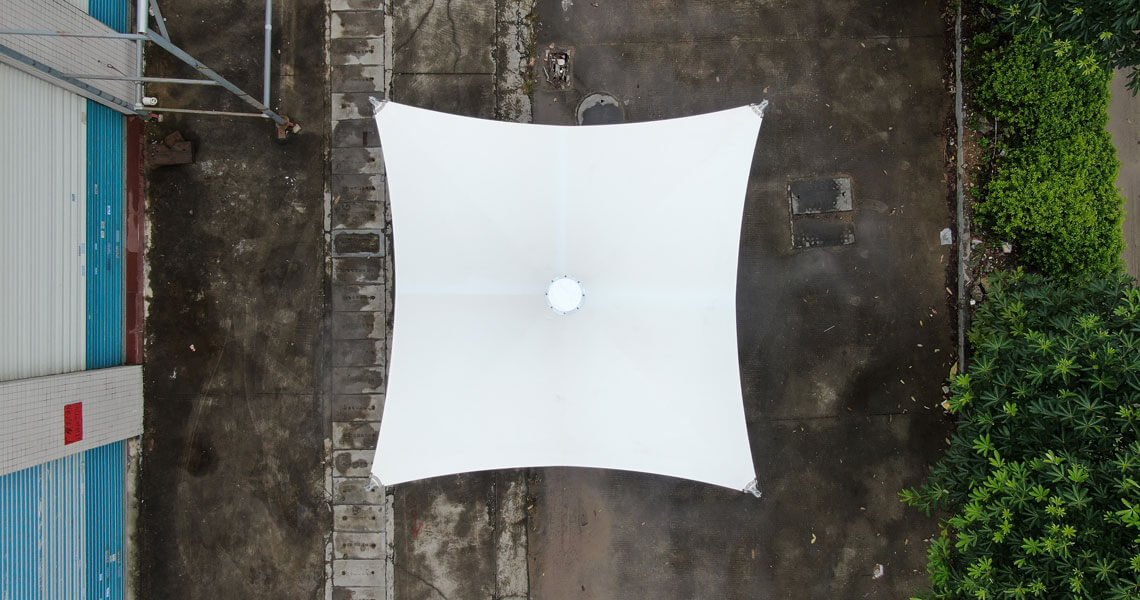

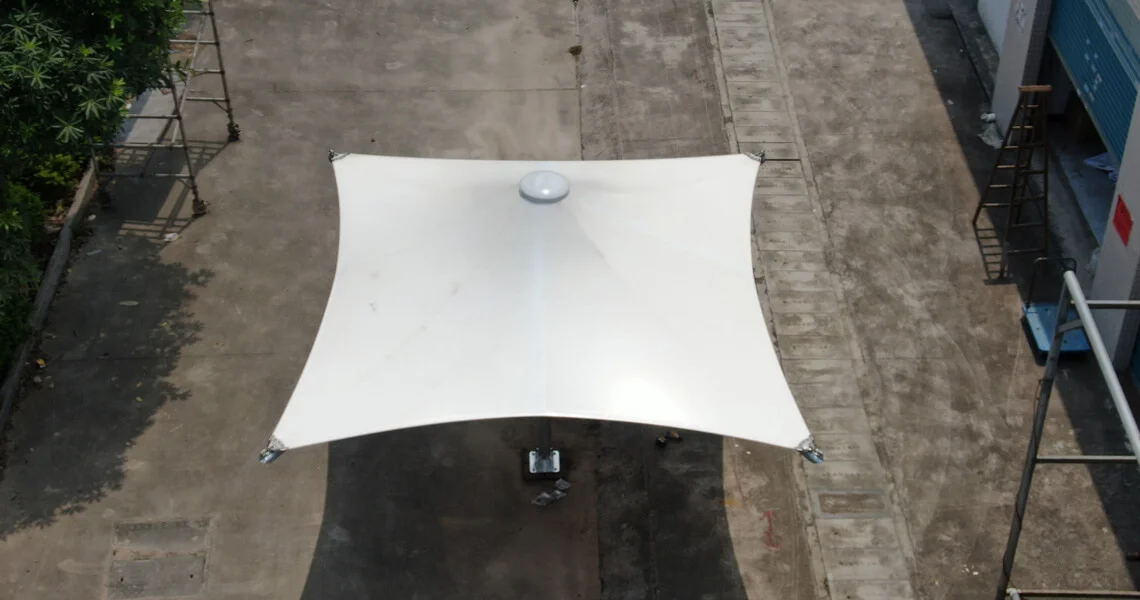

Square Canopy
| Model No. | Nominal Size (mm) | Overall Height (mm) | Under Canopy Height (mm) |
|---|---|---|---|
| XNS30 | 3000 x 3000 | 3350 | 2400 |
| XNS40 | 4000 x 4000 | 3660 | 2400 |
| XNS50 | 5000 x 5000 | 3660 | 2400 |
Hexagonal Canopy
| Model No. | Nominal Size (mm) | Overall Height (mm) | Under Canopy Height (mm) |
|---|---|---|---|
| XNH30 | 3420 diagonal | 3350 | 2400 |
| XNH40 | 4590 diagonal | 3520 | 2400 |
| XNH50 | 5740 diagonal | 3800 | 2400 |
